OpenProject integration

B

Projects

openproject

External (OpenConnector)

Link OpenProject work packages to Open Register objects. Mirrors the xWiki pattern — routed through OpenConnector, no local link table.

Group

External

Required app

openconnector

Storage

External (no local store)

Icon

Briefcase

Drive an OpenProject project from an Open Register object. Link an existing work package, create one straight from the object, or surface the work-package status on the object's detail page. Like the xWiki leaf, all CRUD goes through OpenConnector — credentials live in one place, the integration carries no HTTP client of its own.

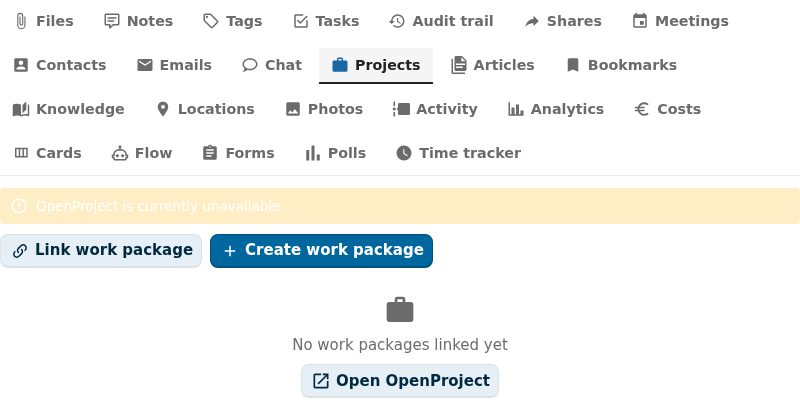

Screenshot

The integration registers in OpenRegister's in-page registry and renders as one of the tabs on the standalone integrations view. The tab is highlighted active here so you can see exactly which surface this leaf controls.

Captured by tests/e2e/leaf-screenshots.spec.ts against the seeded integration-verification register on the dev container. Empty state (Nothing linked yet) is expected on a freshly seeded object — link an upstream entity from the tab's + Add affordance to populate it.

What it does

• Lists OpenProject work packages linked to each Open Register object on the Projects sidebar tab.
• Lets users create a new work package on a chosen project + type straight from the object.
• Lets users link an existing work package by id or URL.
• Lets users update a linked work package (title, status, assignee) without leaving Open Register.
• Lets users unlink. The work package stays in OpenProject; only the OpenConnector pairing is removed.
• Resolves a referenceType: 'openproject' schema property to a single-entity chip with the package id and status.

Setup

1. Install OpenConnector

Install the openconnector Nextcloud app. The Projects integration is hidden until OpenConnector is installed and enabled.

2. Create the openproject source

OpenProject offers an OAuth2 API and an API-key API. Both are supported. Open OpenConnector → Sources → New source:

• location — your OpenProject API base URL, for example https://openproject.example.org/api/v3
• auth — OAuth2 (recommended) or API key (for headless integrations)

For OAuth2: register the OpenConnector callback URL with your OpenProject admin. For API key: generate one on OpenProject → My account → Access tokens. Save the source, then click Test connection.

3. Verify in Open Register

Go to Administration → Open Register → Integrations. The openproject row should report:

• Storage: external
• Required app: openconnector
• Auth status: configured
• Health: ok

4. Use it on an object

Open any object whose schema declares linkedTypes: ['openproject']. The Projects tab appears in the sidebar.

• Link an existing work package — paste an OpenProject URL or work-package id.
• Create a new work package — pick a project + work-package type, give it a subject and description. The new work package lands in OpenProject and the link is recorded.

Local verification setup

The repo ships a docker-compose template that boots a real OpenProject all-in-one container alongside XWiki for the leaf-verification harness:

docker compose -f docker-compose.integration-verification.yml up -d verification-openproject

The compose service sets OPENPROJECT_ADDITIONAL__HOST__NAMES to include both localhost:8082 (browser admin) and verification-openproject (container-to-container). Without it OpenProject's Rails host-authorization layer rejects every cross-container request with HTTP 400 Invalid host_name configuration before it reaches a controller.

First-boot needs an admin password reset:

1. Visit http://localhost:8082/login, sign in as admin / admin.
2. OpenProject forces a password change. Pick a 10+ character one (e.g. OpenProject1234).
3. Dismiss the onboarding tour (it overlays UI elements and blocks the next step).
4. Go to My account → Access tokens → API token → Create.
5. Copy the token. OpenProject shows it once, never again.

Both steps are scriptable with Playwright — the same browser harness used for the XWiki distribution wizard handles them in one pass.

Create the OpenConnector source pointing at the API base (/api/v3):

curl -u admin:admin -H 'OCS-APIRequest: true' -X POST \
  http://localhost:8080/index.php/apps/openconnector/api/sources \
  -H 'Content-Type: application/json' \
  -d '{
    "name": "OpenProject",
    "slug": "openproject",
    "reference": "openproject",
    "location": "http://verification-openproject:80/api/v3",
    "isEnabled": true,
    "type": "api",
    "auth": "basic",
    "username": "apikey",
    "password": "<your-api-token>",
    "headers": {"Accept": "application/json"}
  }'

OpenProject accepts HTTP Basic with apikey as the username and the API token as the password — that's the simplest auth for headless integrations. For production prefer OAuth2 with a scoped service account.

Probe the leaf:

curl -u admin:admin -H 'OCS-APIRequest: true' \
  "http://localhost:8080/index.php/apps/openregister/api/objects/{register}/{schema}/{object}/integrations/openproject"
# → 200 {"items": []}

Configuration

Field	Open Register side	OpenProject side
Source slug	openproject	—
Storage	external (no link table)	—
Mapping	work-package id, subject, status, assignee, URL	/api/v3/work_packages/{id}
Refresh	Per render (OpenConnector cache configurable)	—
Auth	OAuth2 or API key	OAuth2 client or personal token
Permissions	Inherits from object RBAC	OpenProject project membership

HAL+JSON envelope

OpenProject returns work packages in a HAL+JSON envelope. The leaf's normalizeList() reaches into _embedded.elements so the registry contract sees a clean rowset. The flat fields are exposed as id, title (subject), status, url.

Authentication

For production, prefer OAuth2 + a service account scoped to the projects you intend to integrate. API keys work for read-only or single-user automation but rotate manually. OpenConnector encrypts the secret at rest.

Using it

Projects sidebar tab

The tab lists linked work packages with title, status pill, and an "open in OpenProject" anchor. The inline "Link work package" form opens the link-or-create flow.

Detail-page widget

Surfaces linked work packages plus an aggregate status line ("3 work packages, 2 open, 1 closed"). The "Create work package" CTA opens the same flow as the tab.

Dashboard widgets

• user-dashboard — your assigned work packages across every linked object.
• app-dashboard — work packages scoped to the consuming app.

Reference property

A schema property typed as { "type": "string", "referenceType": "openproject" } renders the linked work package's id + status chip in CnFormDialog and CnDetailGrid.

Troubleshooting

• No projects appear in the picker. The OAuth user or API-key user has no project membership. Add the user as a member of at least one project in OpenProject.
• "OpenConnector source missing" banner. You haven't created the openproject source in OpenConnector yet, or you renamed it. The source slug must be exactly openproject.
• "Authentication expired" banner. OAuth2 token can no longer be refreshed. Re-authenticate the OpenConnector source.
• Work package shows up but link 404s. The OpenProject base URL is misconfigured. Update location on the OpenConnector source.
• Tab is missing. Either OpenConnector isn't installed or the object's schema does not declare linkedTypes: ['openproject']. Check both.

Supported OpenProject versions

12.x and later. Earlier versions use a different REST contract and are not supported by the default OpenConnector adapter.
