Photos integration

Photos
photos
Provider stub

Filter the object's linked files to image MIME types and enrich with EXIF / taken-at / camera / dimensions via NC Photos. Provider stub today.

Group
Documents
Required app
photos
Storage
Link table
Icon

Build on the Files leaf: pick only the image attachments and enrich them with NC Photos metadata (EXIF, taken-at, camera, dimensions). The Photos tab will render a gallery view; the detail-page widget shows a hero image. Provider registers today; the wrapping PhotoService lands in a follow-up.

Screenshot​

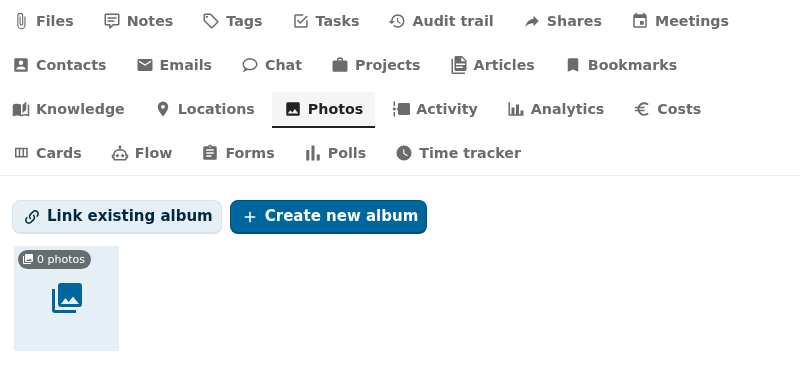

The integration registers in OpenRegister's in-page registry and renders as one of the tabs on the standalone integrations view. The tab is highlighted active here so you can see exactly which surface this leaf controls.

photos integration tab active in the OpenRegister integrations view

Captured by tests/e2e/leaf-screenshots.spec.ts against the seeded integration-verification register on the dev container. Empty state (Nothing linked yet) is expected on a freshly seeded object — link an upstream entity from the tab's + Add affordance to populate it.

What it will do​

  • Reads the object's linked files, filters to image MIME types.
  • Enriches each image with NC Photos metadata: EXIF, taken-at, camera, dimensions, location (when present).
  • Lists images on the Photos sidebar tab in a gallery layout.
  • Renders a hero image (the first or a chosen one) on the detail-page widget.
  • Lets users mark which file is the hero. The mark lives on the Photos link row, not on the file.

Setup​

1. Install NC Photos​

Install the photos Nextcloud app. The Photos tab appears once it's enabled.

2. Use it on an object​

Open any object whose schema declares linkedTypes: ['photos']. The Photos tab appears. Today it renders the empty state until the wrapping service lands.

Configuration​

FieldOpen Register sideNC Photos side
Storagelink-table (reuses file links; adds an image-specific overlay table)NC Photos metadata store
FilterMIME type image/* on the linked files—
MetadataEXIF + Photos-derived fields cached on the overlay rowNC Photos service
RefreshPer render (metadata cached on file upload)—

Why not just use Files?​

The Files leaf already lists all attached files including images. The Photos leaf adds three things:

  1. Filter to images — no PDFs, no docs, just photos.
  2. EXIF / Photos metadata — taken-at, camera, dimensions, sometimes location.
  3. Gallery + hero — a layout that's optimised for images, not a file list.

Add 'photos' to linkedTypes only when these matter. Otherwise the Files leaf is enough.

Local verification setup​

The leaf-verification harness in tests/e2e/leaf-verification.spec.ts probes every advertised provider against the seeded integration-verification register; you can reproduce a single-leaf check by hand against any OpenRegister dev container.

1. Install the photos Nextcloud app​

docker exec -u www-data nextcloud php occ app:install photos
docker exec -u www-data nextcloud php occ app:enable photos
docker exec nextcloud apache2ctl graceful   # bust OPcache so the registry sees the new app

Without photos enabled, the photos provider reports enabled: false on the OCS capabilities payload and its sub-resource endpoint refuses to dispatch.

2. Probe the registry to confirm the provider is advertised​

curl -s -u admin:admin -H 'OCS-APIRequest: true' \
  http://localhost:8080/ocs/v2.php/cloud/capabilities?format=json \
  | jq '.ocs.data.capabilities.openregister.integrations.providers[] | select(.id == "photos")'

Expected payload — the enabled flag flips to true once the required app is installed.

3. Probe the per-object sub-resource​

curl -s -u admin:admin -H 'OCS-APIRequest: true' \
  "http://localhost:8080/index.php/apps/openregister/api/objects/21/166/25706ca9-c989-4d6b-9f7b-98cf1cc70639/integrations/photos"

Most recent harness run (against the seeded verification-probe object on this dev container):

  • Status: 200 (list-envelope)
  • Latency: 82ms
  • Body: matches the documented list envelope below
{
  "items": []
}

The OCS-APIRequest: true header is mandatory — without it, Nextcloud's session-CSRF guard short-circuits with HTTP 412 before the provider runs. An empty items: [] is the correct response for a freshly-seeded object that hasn't been linked to any upstream photos entity yet.

Current status​

Provider registered. Wrapping service + link table tracked under openspec/changes/integration-photos.
